Replace Trunk Lid

Remounting the install parts of the trunk lid

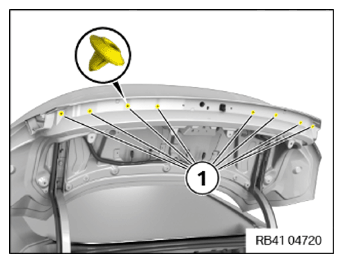

• Remount the clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

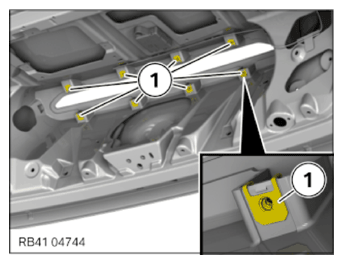

• Remount sheet metal nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

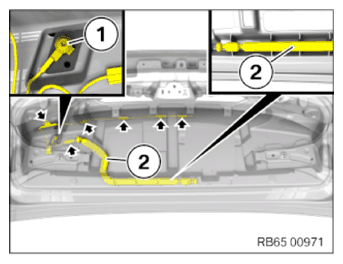

• Loosen screw (1).
• Unclip the bracket at the marked locations (arrows).
• Feed out the antenna wire (2).
• Feed in the antenna wire (2) on the new trunk lid and route without kinks.
• Clip in the bracket on the new trunk lid at the marked areas (arrows).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Antenna wire to trunk lid
  Oval-head screw
  	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

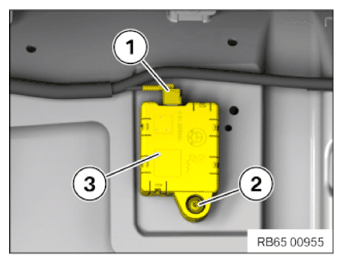

• Unlock plug connection (1) and disconnect.
• Release the screw (2) and remove the emergency GSM antenna (3).
• Position the emergency GSM antenna (3) in the new trunk lid and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Emergency GSM antenna to trunk lid
  Oval-head screw for thermoplastic
  	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

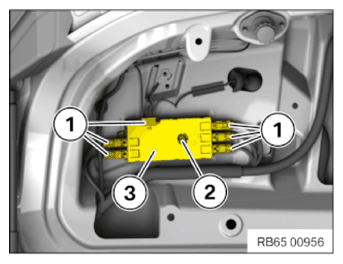

• Unlock and disconnect plug connections (1).
• Release the screw (2) and remove the antenna amplifier (3).
• Position the antenna amplifier (3) on the new trunk lid and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Antenna amplifier on trunk lid
  Oval-head screw M5x16
  	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.
  NOTE: Perform the steps on the right and left side.

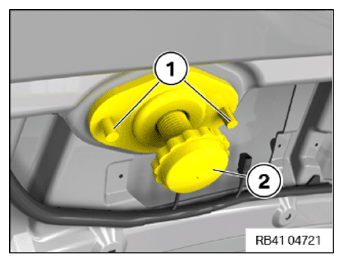

• Push through the pins (1) of the stop pad (2) and remove the stop pad (2).
• Mount the stop pad (2) to the new trunk lid.
• Drive in the pins (1) of the stop pad (2) until they are flush.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install the gutter strip for the trunk lid

  Courtesy of BMW OF NORTH AMERICA, INC.

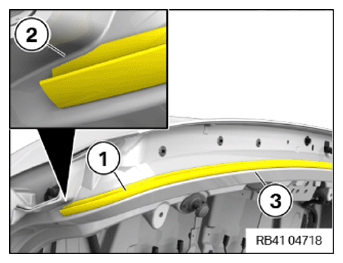

• Center the gutter strip for the trunk lid (1).
• Use the centered gutter strip for the trunk lid (1) to mark the start of the adhesive bond on the outside of the trunk lid (2).
• Fit the gutter strip for the trunk lid (1) at the mark for the start on the trunk lid (2) as shown.
• Route the center part of the gutter strip for the trunk lid (1) parallel to the edge (3) of the trunk lid (2) and fix temporarily with adhesive tape.
• Gradually pull off the protective film for the gutter strip (1).
• Check the position of the gutter strip for the trunk lid (1) and correct where required.
• Adhesive bond the gutter strip for the trunk lid (1) without overstretching or compression along the edge (3) of the trunk lid (2).
• Always press on the gutter strip for the trunk lid (1) perpendicular to the bonding surface.
