Installing The Left Engine Compartment Lid Hinge

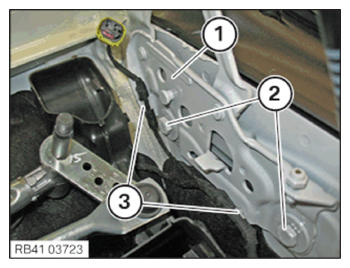

• Position the engine compartment lid hinge (1)  as per the available screw marks.
• Tighten down screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Engine compartment lid hinge to body
  M8 screw Renew screw.
  	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cable bracket (3)  .

Follow-up work

• Refer to INSTALL THE ACTUATOR ON THE LEFT HOOD HINGE .
• Refer to ATTACH WINDSHIELD PANEL COVER .
• Refer to INSTALL LEFT AND RIGHT WIPER ARM .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT
• Refer to INSTALLING THE GAS PRESSURE SPRING FOR HOOD .
• Refer to INSTALL HOOD .
• Refer to CHECK THE GAP DIMENSION OF THE HOOD .
• Refer to INSTALLING JET CHAIN PARTIALLY .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
