Install Hood
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
Perform the steps on the right and left side.
- Position the hood on the hinge.
- Support the hood.

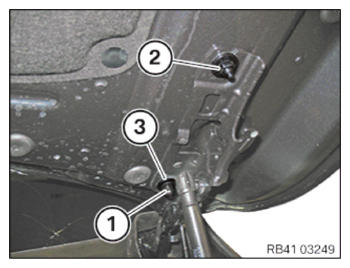

- Tighten nuts (2) and (3).TIGHTENING TORQUES SPECIFICATION
Hood to the hinge Nut M8 Tightening torque 19 Nm - Install the protective cap (1).
Follow-up work
- Refer to INSTALLING JET CHAIN PARTIALLY .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
