Adjust Door

Preliminary work

Follow-up work!

Check

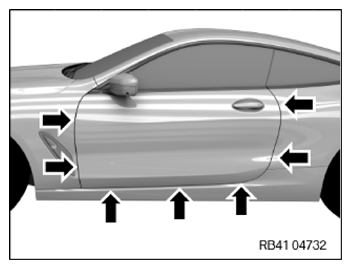

• Check gap dimension between door and the adjacent body parts.
  TECHNICAL DATA SPECIFICATION



  Gap dimension side panel to front door
  1 Side panel; 2 front a door	3.8-1+1 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	0.8-0.8+0.8 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL DATA SPECIFICATION



  Gap dimension front door to door sill trim panel
  1 front door; 2 door a sill trim panel	3.5-1.2+1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	13.3-1.3+0.3 mm

  TECHNICAL DATA SPECIFICATION



  Gap dimension front door to rear quarter panel
  1 Front door; 2 rear a quarter panel	3.8-1+1 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	0-0.3+1.3 mm

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust door
• Open door.

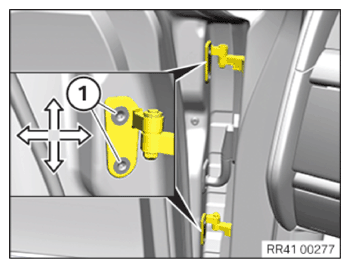

• Loosen screws (1) until the door can be shifted.
• Adjust height of door.
• Adjust width of the door.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Door hinge to door
  Countersunk screw with Torx M8
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust lock striker

  Precondition

  The screws on lock striker are loosened so far that the lock striker can still be shifted.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: 41 00... Gap dimensions for body

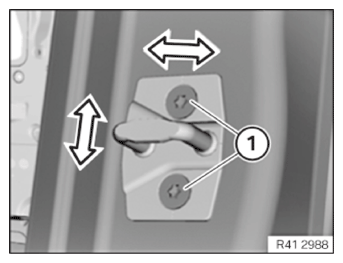

• Adjust the height of the lock striker so that the door lock does not bump or drag.
• Shift the lock striker sideways to adjust the gap dimension (protrusion) of the door.
• Tighten down screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Lock striker
  screw
  	Tightening torque	21 Nm
