Installing The Front Holder

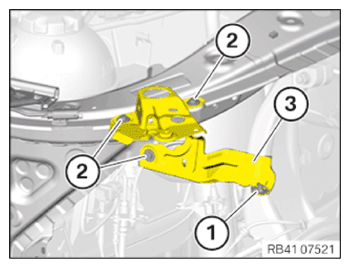

- Position holder (3).
- Renew screws (2).
Parts: Screws
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Side panel holder to body Screw M6 Renew screw. Tightening torque 8 Nm - Insert the sheet metal nut (1) on the new part.

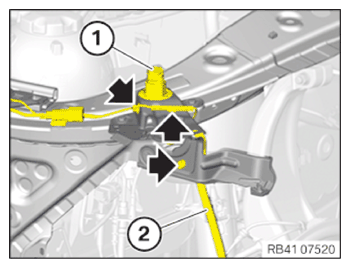

- Install adjustment buffer (1):
- Connect connectors (2) and lock.
- Clip wiring harness (3) into the holder (arrows).
