Removing The Right Rear Quarter Panel

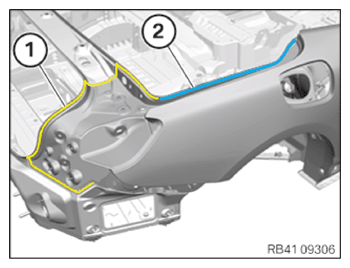

Open welded connections in area (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Release the spot-welded adhesive joints in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

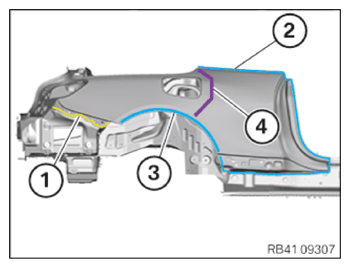

Open welded connections in area (1).
Release the spot-welded adhesive joints in area (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Loosening bonded folded joints
Release folded bonded joints in area (3).
Release and remove the side panel from the cavity sealing (4).

Courtesy of BMW OF NORTH AMERICA, INC.
