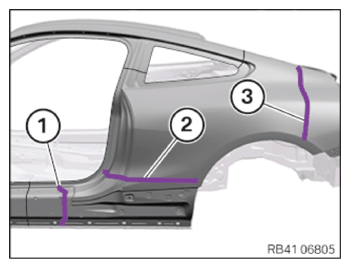

Removing The Rear Left Side Panel

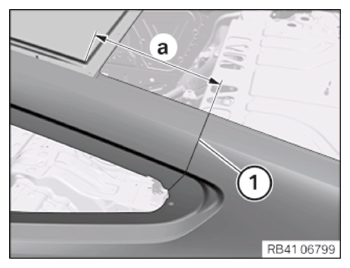

- Mark the separating cut (1) at the C-pillar according to the dimensions and cut. Disconnect only the outer panel.
Dimension a = 262 mm from the corner of the roof outer skin
- Compare position of severance cut with reinforcement plate.NOTE: TECHNICAL INFORMATION

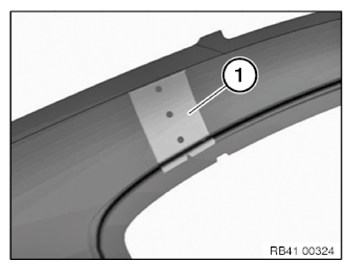

For additional information see: 41 00... Determination of separating cut using a template - Determine position of the separating cut in addition to the dimensions with the aid of a template (1).

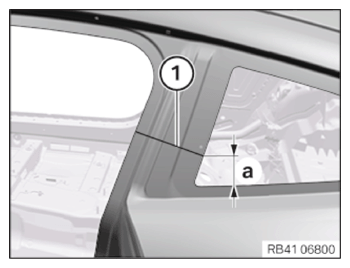

- Mark the separating cut (1) on the B-pillar according to dimensions and cut. Disconnect only the outer panel.
Dimension a = 60 mm
- Compare position of severance cut with reinforcement plate.

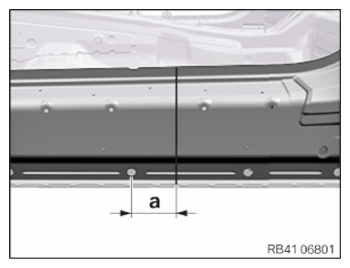

- Mark the separating cut on the door sill according to dimensions and cut. Disconnect only the outer panel.
Dimension = 100 mm from the center point of the hole with 0 20 mm.
- Compare position of severance cut with reinforcement plate.

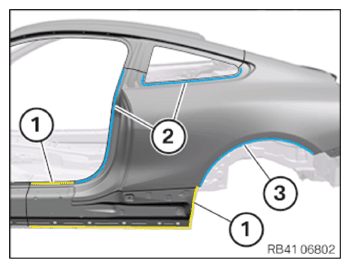

- Loosen welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections - Open spot-welded adhesive joints in areas (2).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Loosening bonded folded joints - Release folded bonded joints in area (3).

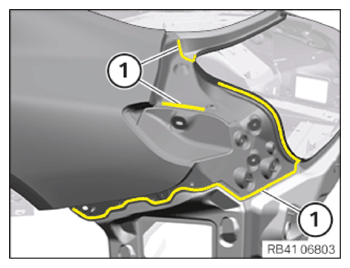

- Loosen welded connections in areas (1).

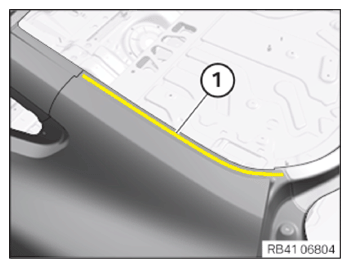

- Open welded connections in area (1).
- Release the side panel of the cavity sealings (1) up to (3) and remove.
