Preparing New Part

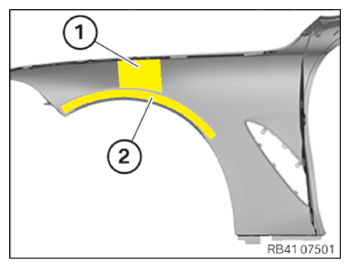

Coat the side panel before painting in the areas (1) and (2) with the sealant D1.
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310ml 83422409985
Paint side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

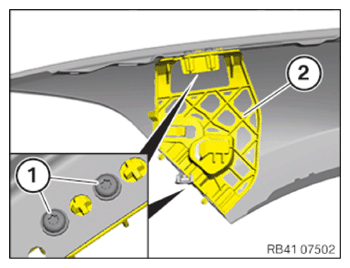

Release the screws (1) and remove the guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

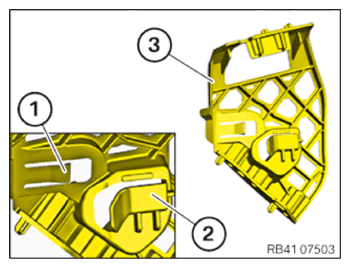

Check the locking mechanism (1) and the bracket (2) on the guide (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» If the guide (3) is damaged.

Measure
- Replace the guide (3).
Position the guide (2) on the new side panel,

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Courtesy of BMW OF NORTH AMERICA, INC.

Release detents (arrows) and dismount the bracket (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

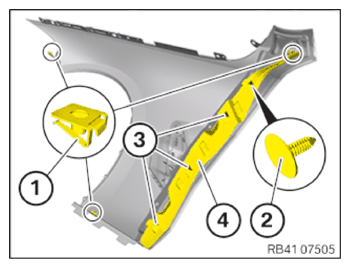

Remount the sheet metal nuts (1) on the new side panel.
Release the clip (2) and the detents (3) and remount the seal (4).

Courtesy of BMW OF NORTH AMERICA, INC.

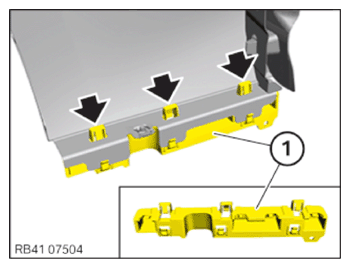

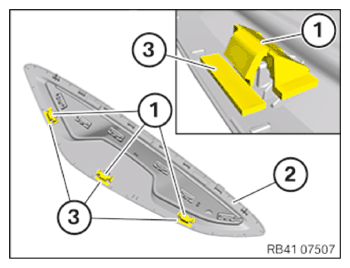

Carefully release the trim (1) at the clamps (arrowed) and guide it out of the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Check
Check the clamps (1) and mounts for the clamps.
Check the adhesive pads (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» If the clamps (2) are damaged.

Measure
- Replace the clamps (2).
  If the mounts are faulty, renew the trim (2).
Result

» The adhesive pads (2) are damaged.

Measure
- Replace adhesive pads (2).

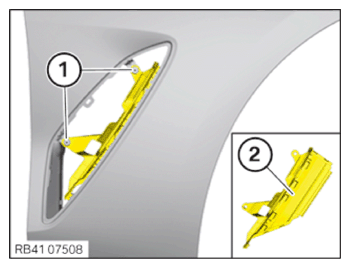

Release the blind rivets (1) and feed the air duct (2) out from the side panel.
Position the air duct (2) on the new side panel.
Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.

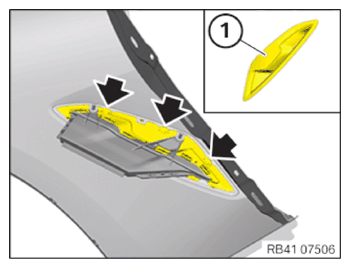

Position the decorative trim (1) on the new side panel and engage it at the clamps (arrows).
