Installing The Left Front Side Panel

• Install the side panel in the sequence shown with the help of a second person.

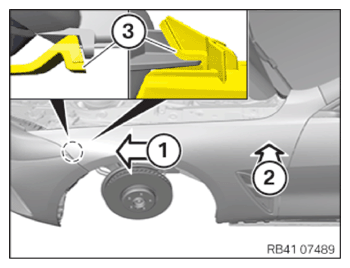

• Position side panel (1) on headlamp. When doing this, make sure that detent and guide (3) are in proper installation positions.
• Position and abut the side panel in the area of the A-pillar (2).
• Screw in all screws on the side panel until it is just about still possible to shift the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: 41 00... Gap dimensions for body
• Adjust gap dimensions.

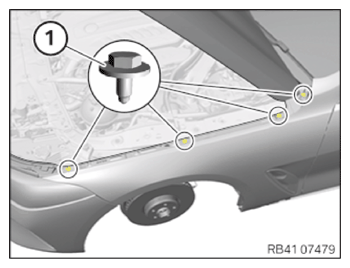

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open the front door.

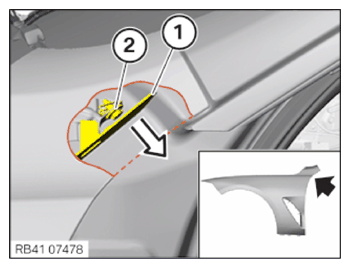

  Pull the sealing (1) down slightly in the direction of the arrow.

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close front door.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

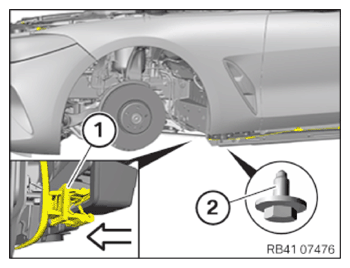

• Secure cable to side panel holder (1).

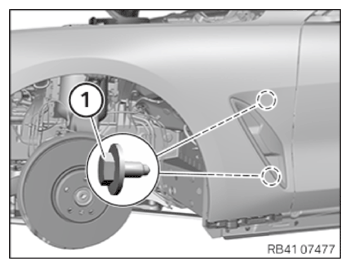

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Side panel to bracket
  M6 screw Renew screw.
  	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

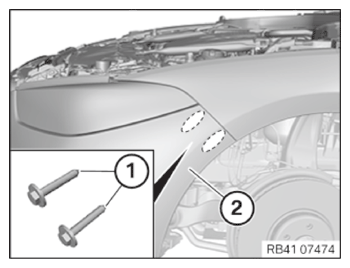

• Clip the bumper cover (2) upwards into the detents.
• Tighten the screws (1) of the bumper cover (2).
  TIGHTENING TORQUES SPECIFICATION



  Front bumper panel to fender
  Thermoplastic screw 5x35
  	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

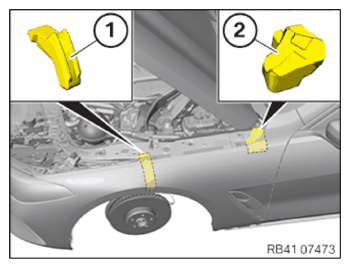

• Install the sound insulation (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

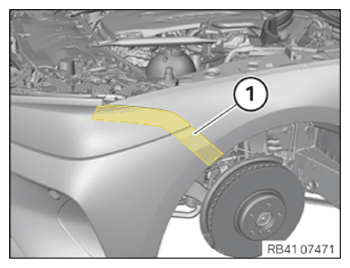

• Remove the plastic adhesive tape (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

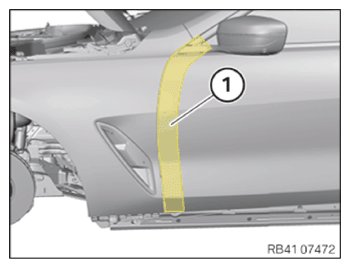

• Remove the plastic adhesive tape (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALL FRONT LEFT OR RIGHT WHEEL .
• Refer to INSTALLING THE DOOR SILL TRIM PANEL .
• Refer to INSTALL THE ILLUMINATED FRONT SILL TRIM .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to INSTALLING THE MOUNTING FOR HOOD SEAL .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
