41 33 040 Replacing Front Left Or Right Side Wall Holder (All 8' Series Models 2019-2023)

General information:

Procedure OBSERVE repair stage 2!

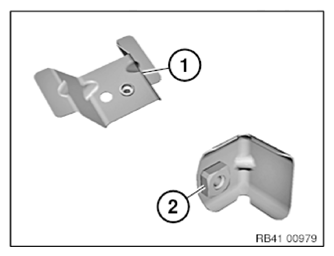

Following new body parts are required (refer to Electronic Parts Catalog):

1. Holder, side wall, front (variant 1)
2. Holder, side wall, front (variant 2)

Following CONSUMABLES are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	2
Cleaning agent R1	1

Removal of side wall holder (variant 1):

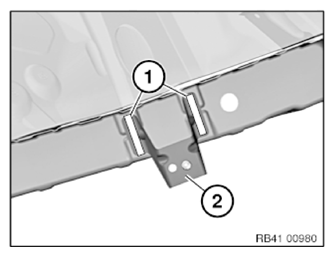

Release welded connections in areas (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

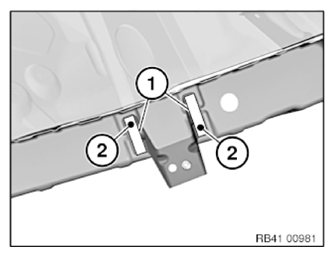

In area of bonding surfaces (1), set 2 4.2 mm dia. bores (2) for blind rivets N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder

Clean all bonding surfaces with cleaning agent R1. Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

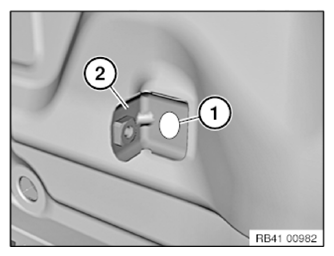

Release welded connection in area (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

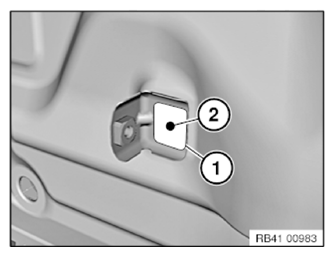

In area of adhesive surface (1), drill a 4.2 mm dia. bore (2) for blind rivet N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder

Clean all bonding surfaces with cleaning agent R1. Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
