Supplying The New Parts Required

Precondition

• Vehicle is fixed on straightening bench.
  NOTE: TECHNICAL INFORMATION

  • Observe the procedure for repair stage 3.

    For additional information see: 41 00... Repair method for repair stage 3

  • For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Preliminary work

Follow-up work

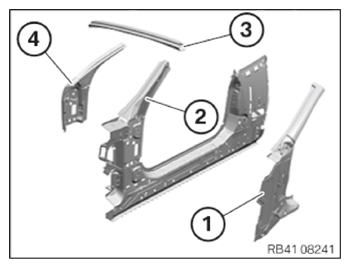

• Prepare the following new parts (see Electronic Parts Catalog [EPC]):

  A-pillar, outer part (1)

  Side frame, center (2)

  Top windshield panel (3)

  Inner A-pillar (4)

  A-pillar molded part

  Shaped part, A-pillar, bottom inner

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog
• Supply the following consumables:

  Material	Quantity
  Adhesive K1	1
  Cleaning agent R1	1
  Cleaning agent R2	1
  Cavity protection wax remover	1
  Sealing compound D1	1
