Preparing New Parts

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components

Remove adhesive residue on the vehicle joining areas.
Adjust and fasten new cowl panel and inner A-pillar parts with an alignment bracket or a universal fixture.

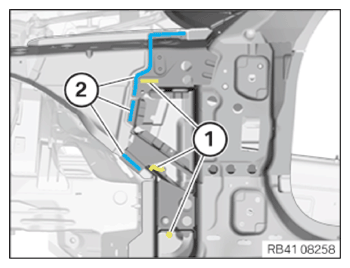

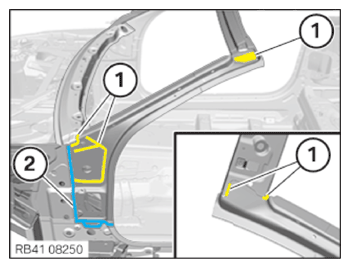

Prepare areas (1) and (2) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints in the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

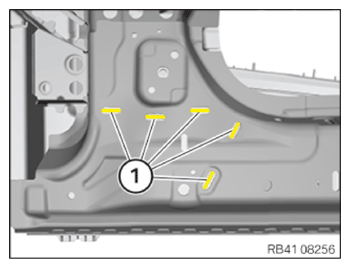

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

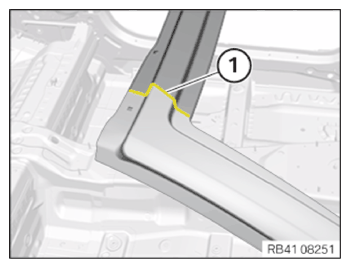

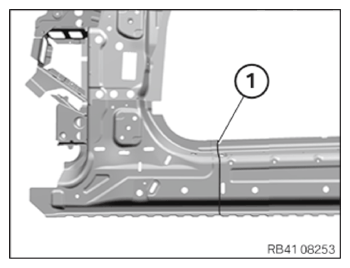

Mark separating cut (1) on new part in accordance with separating cut on vehicle and cut.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part using an alignment bracket or a universal fixture and secure it.

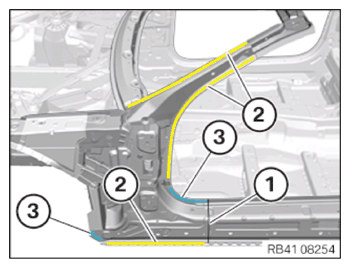

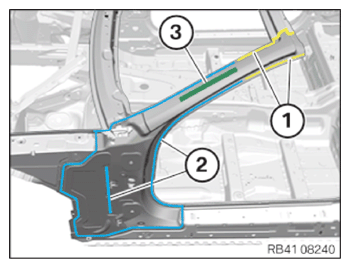

Prepare separating cut (1) and areas (2) and (3) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints in areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints.
To do so, prepare the additional welded connections as plug weldings from the inside.

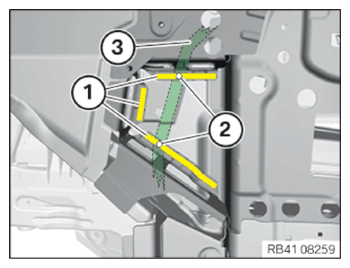

Prepare areas (2) so that the repair spot-welds can be set on the series spot-welds.
Pay attention to the adhesive areas (3) behind.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

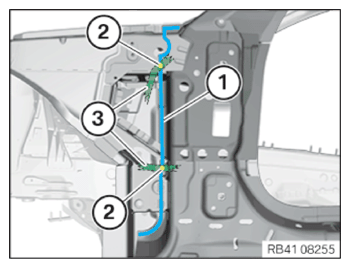

Prepare areas (1) and (2) for joining by welding.

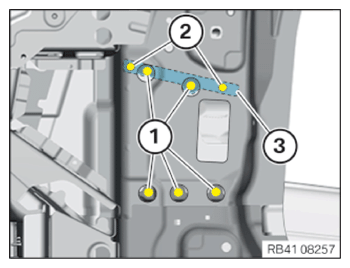

Prepare additional welded connections (2) in flange area (3) by plug-welding from the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) and (2) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.
Prepare the areas (2) so that the repair spot-welds can be set on the production spot-welds.
Pay attention to the adhesive area (3) behind.

Courtesy of BMW OF NORTH AMERICA, INC.
Fit in new part.
Prepare areas (1) and (2) for joining by welding.
Observe the replacement procedure for standard production spot-welded adhesive joints in areas (2).

NOTE: TECHNICAL INFORMATION
Structural adhesive bonding .
Observe preparation of bonding surfaces.
For additional information see: 41 00... BMW bonding instructions

Courtesy of BMW OF NORTH AMERICA, INC.

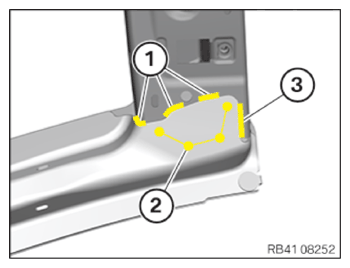

Prepare area (3) for steel on steel structural bonding.
