Completely Removing Upper Cowl Panel And A-Pillar

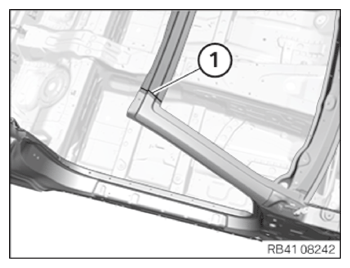

Perform coarse separating cut (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Perform coarse separating cut (1) as shown.

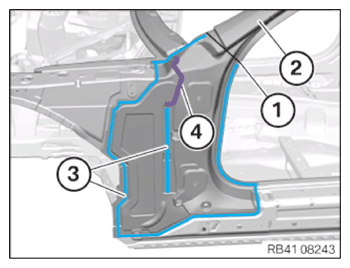

Cut through A-pillar (2) completely and remove cowl panel.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Open spot-welded adhesive joints in areas (3).
Release outer section of A-pillar from cavity sealing (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

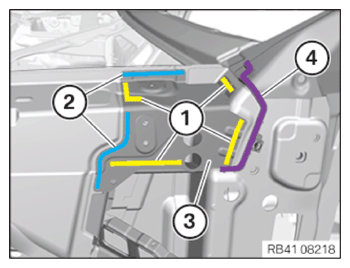

Release welded connections in areas (1).
Open spot-welded adhesive joints in areas (2),
Remove connecting plate (3),
Remove cavity sealing (4),

Courtesy of BMW OF NORTH AMERICA, INC.

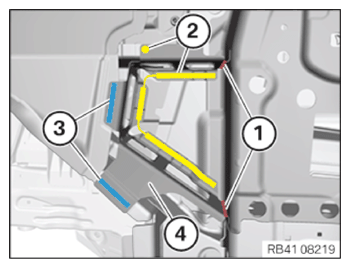

Carry out the rough separating cuts (1) on the bulkhead (4).
Partially open the welded connections in areas (2) with a file belt grinder.
Open spot-welded adhesive joints in areas (3).
Remove bulkhead (4).

Courtesy of BMW OF NORTH AMERICA, INC.

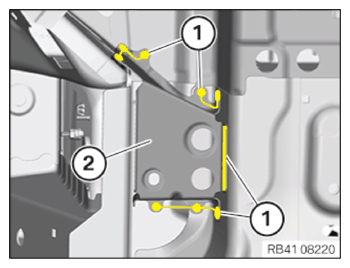

Open welded connections in areas (1) and remove crash reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

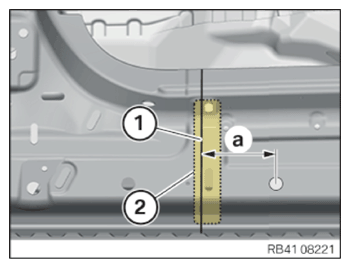

Mark separating cut (1) according to dimension a and cut.
In so doing, do not damage the bulkhead (2) underneath.

Dimension a = 110 m.

Courtesy of BMW OF NORTH AMERICA, INC.

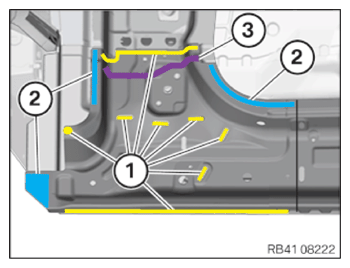

Release welded connections in areas (1).
Open spot-welded adhesive joints in areas (2).
Release lower reinforcement of A-pillar from cavity sealing (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Perform separating cuts (1) as shown.
Open welded connections in area (2) and remove sheet metal cutout (3).

Courtesy of BMW OF NORTH AMERICA, INC.

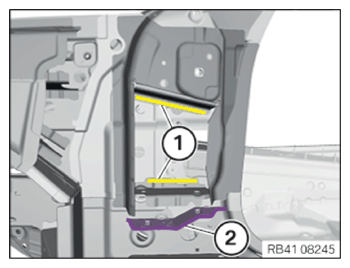

Release welded connections in areas (1).
Remove cavity sealing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

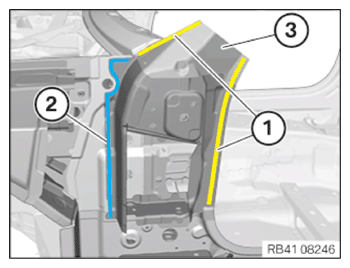

Release welded connections in areas (1).
Open spot-welded adhesive joints in area (2) and remove A-pillar reinforcement (3).

Courtesy of BMW OF NORTH AMERICA, INC.

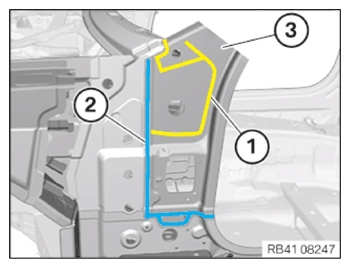

Open welded connections in area (1).
Open spot-welded adhesive joints in area (2) and remove A-pillar inner section (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Open brazed connection (1).
Open welded connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

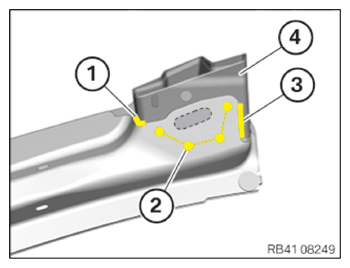

Open welded connections (1) to (3) and remove cowl panel section (4).

Courtesy of BMW OF NORTH AMERICA, INC.
