New Parts Required

NOTE: TECHNICAL INFORMATION

Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.

Preliminary work

Follow-up work

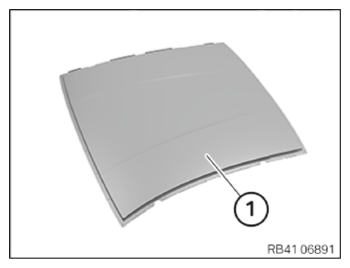

Roof outer skin (1)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog

Supply the following consumables:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K2	1
Adhesive K5 (50ml)	1
Adhesive K4 (50 ml) (only CFRP roof)	1
Activator 205 (250 ml) (only CFRP roof)	1
Cleaning agent R1	1
Cleaning agent R2	1
Sealant D1	1
sound insulation	3
Blind rivet for ground strap	8

NOTE: TECHNICAL INFORMATION
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28°C without fail.
Before installation: Store roof outer skin and vehicle for at least 12 hours at room temperature (17°C to 35°C).

Tools also required:
Roof pliers set, order number: 81 43 2 158 707
