Supplying The New Parts Required
Precondition
- Vehicle is fixed on straightening bench.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

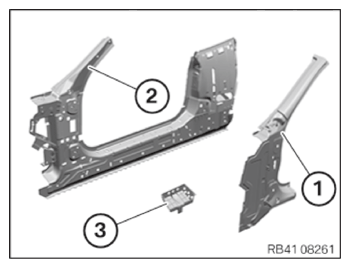

A-pillar, outer part (1)
Side frame, center (2)
Water retention compartment (3)
A-pillar molded part
Shaped part, A-pillar, bottom inner
Wheel well, shaped part, rear
B-pillar shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K1 1 Cleaning agent R1 1 Cleaning agent R2 1 Cavity protection wax remover 1 Sealing compound D1 1
