Removing Side Frame Completely

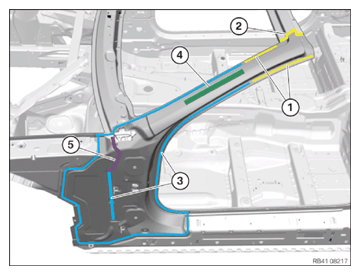

Release welded connections in areas (1).
Open brazed connection in the area (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Open spot-welded adhesive joints in areas (3).
Release bonded connection in area (4).
Detach outer section of A-pillar from cavity sealing (5) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

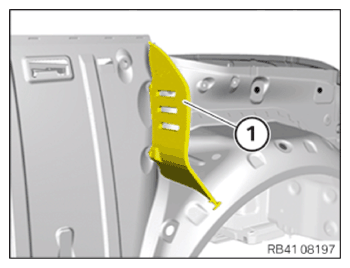

Remove the cavity sealing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

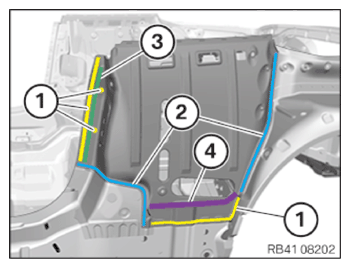

Release welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Open spot-welded adhesive joints in areas (2).
Release bonded connection in area (3).
Detach B-pillar reinforcement from radiator tank (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

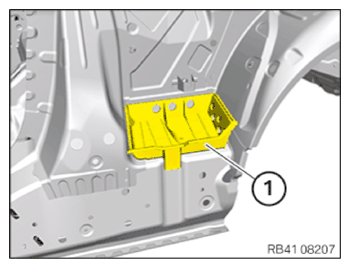

Remove radiator tank (1).

Courtesy of BMW OF NORTH AMERICA, INC.

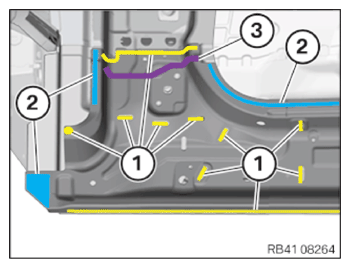

Release welded connections in areas (1).
Open spot-welded adhesive joints in areas (2).
Detach B-pillar crash reinforcement from cavity sealing (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove cavity sealing (1).
Release welded connections in areas (2).
Open spot-welded adhesive joints in areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.

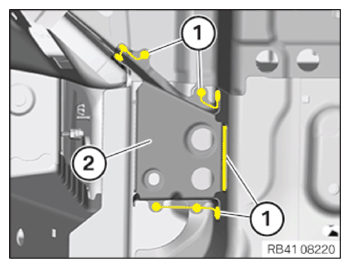

Open welded connections in the areas (1) and remove the crash reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

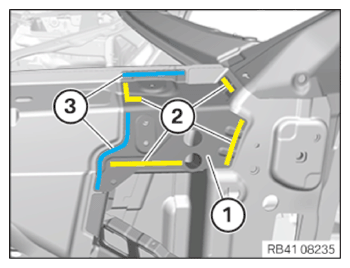

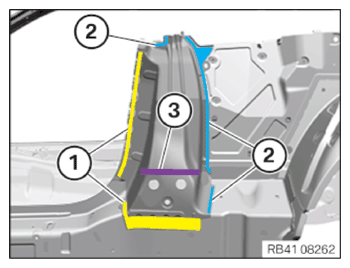

Release welded connections in areas (1).
Open spot-welded adhesive joints in areas (2).
Detach side frame from cavity sealing (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The following steps are only necessary if the A-pillar upper section reinforcement is also replaced.
Release welded connections in areas (2).
Open spot-welded adhesive joints in areas (3).
Remove connecting plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Carry out the rough separating cuts (1) on the bulkhead (4).
Partially open the welded connections in areas (2) with a file belt grinder.
Open spot-welded adhesive joints in areas (3).
Remove bulkhead (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Perform separating cuts (1) as shown.
Open welded connections in the area (2) and remove the sheet metal cutout (3).

Courtesy of BMW OF NORTH AMERICA, INC.

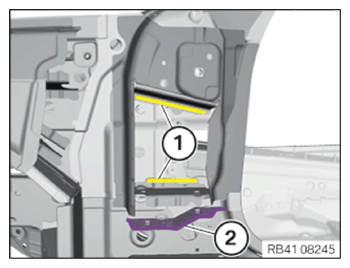

Release welded connections in areas (1).
Remove cavity sealing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

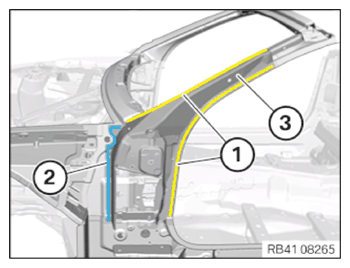

Release welded connections in areas (1).
Open spot-welded adhesive joints in the area (2) and remove the A-pillar upper section reinforcement (3).

Courtesy of BMW OF NORTH AMERICA, INC.
