Preparing New Part

Release the welded connections in the area (1) with the file belt sander. In area (1), prepare the new part and body for joining by plug-welding.

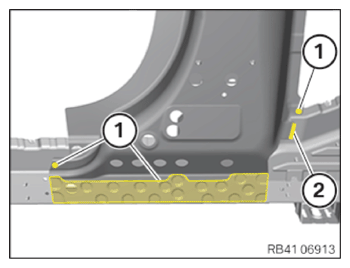

In areas (2), open the welded connections from the inside. In areas (2), prepare the new part and body for joining by spot-welding.

Courtesy of BMW OF NORTH AMERICA, INC.

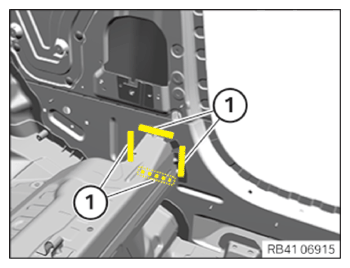

Release the welded connections in the areas (1) and (2) with the file belt sander.
In areas (1), prepare the new part and body for joining by spot-welding.

Courtesy of BMW OF NORTH AMERICA, INC.

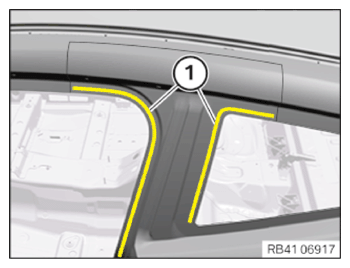

Adjust new part and prepare for joining by welding in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare new part in the areas (1) for joining through weld.

Courtesy of BMW OF NORTH AMERICA, INC.
Additional steps when installing the side panel:
Mark and perform the separating cuts on the side panel new part in the roof frame area in accordance with separating cuts on the vehicle.
Prepare the reinforcement plates for the separating cuts on the roof frame.
Adjust the side panel new part.

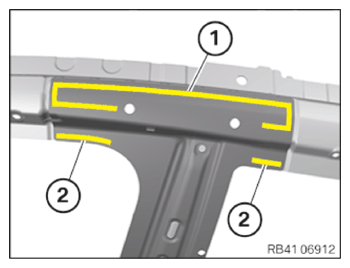

Prepare the separating cuts and reinforcement plates (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

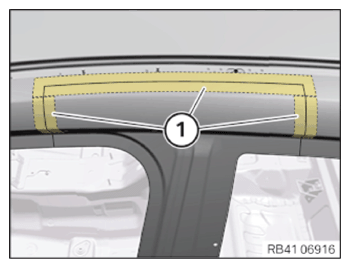

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Additional procedures for the new part preparation process of the side panel can be fount in the repair instructions "Replacing the rear quarter panel".
