Preparing New Part
- Detach sheet metal parts that are not required from new parts.
- Adjust the new B-pillar inner section and B-pillar reinforcement using an alignment bracket or universal fixture and secure in place.

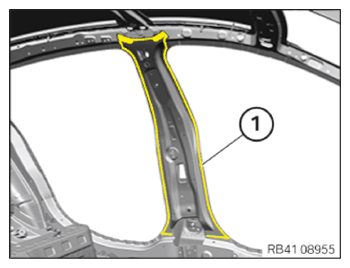

- Adjust the new parts and prepare for joining by welding in the areas (1).

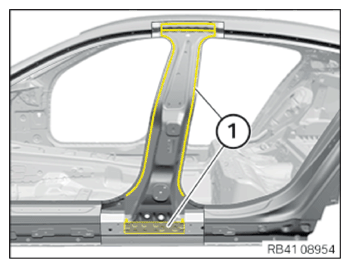

- Prepare the new parts in the areas (1) for joining by welding.
- Mark out and make separating cuts on the new B-pillar outer skin in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates for separating cuts. Prepare the separating cuts and reinforcement plates for joining by welding.

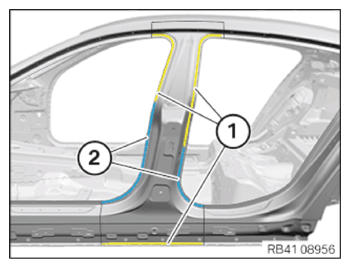

- Adjust new part and prepare for joining by welding in areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components - In the areas (2), observe the procedure for replacing spot-welded adhesive joints for series production.
