Install B-Pillar With Reinforcement
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
- Install and secure the new parts of the B-pillar with an alignment bracket or a universal fixture.

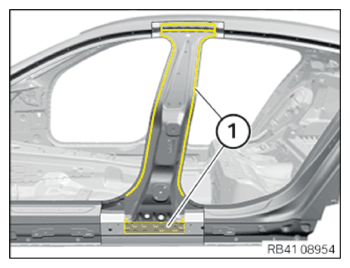

- Weld the new parts in the areas (1).

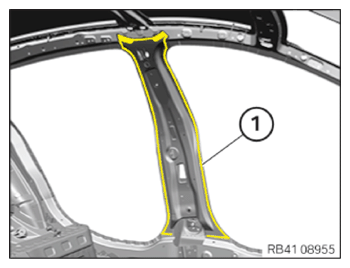

- Weld the new parts in the area (1).NOTE: TECHNICAL INFORMATION

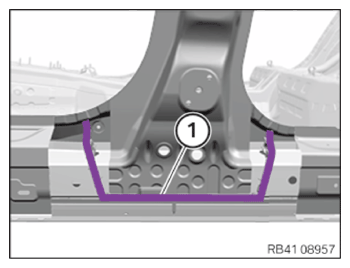

For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply the sealant D1 to the cavity sealing (1). Fit cavity sealings.CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310ml 83422409985 - Apply the sealant D1 to the cavity sealing (1).

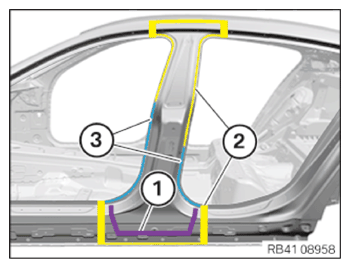

- Install the new B-pillar outer skin and reinforcement plates and weld in the areas (2) and (3) as per the new part preparation process.
