Preparing New Parts
- Fit in new part.NOTE: TECHNICAL INFORMATION

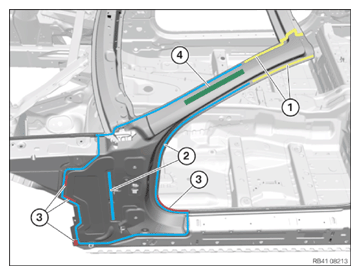

For additional information see: 41 00... Spot-weld bonding steel components - Prepare areas (1) and (2) for joining by welding.
Follow the procedure for replacing standard production spot-welded adhesive joints in the areas (2).
- In areas (3), mind the bonded connections between the panels located underneath!
As far as possible, prepare the areas (3) so the repair spot-welds can be set on the production spot-welds.
NOTE: TECHNICAL INFORMATION
Structural adhesive bonding .
Observe preparation of bonding surfaces.
For additional information see: 41 00... BMW bonding instructions - Prepare the area (4) for the structural adhesive bonding of steel on steel.
