Remove A-pillar With The Reinforcement

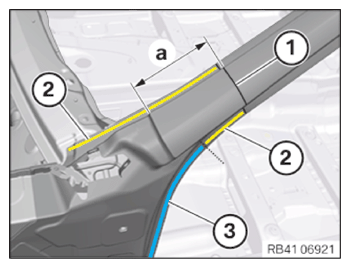

Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 150 mm.
Release welded connections in areas (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Release the spot-welded adhesive joints in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 50 mm from the center of the hole '0 20 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

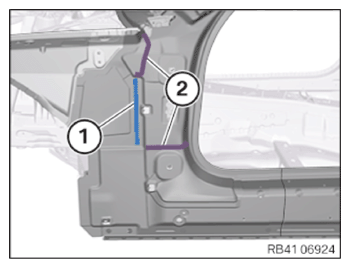

Open welded connections in area (1).
Open spot-welded adhesive joints in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

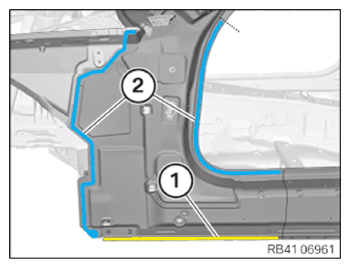

Release the spot-welded adhesive joints in area (1).
Release and remove the A-pillar outer part from the cavity sealing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

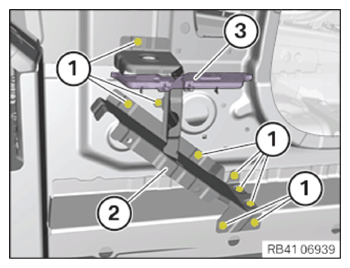

Release the spot-welded adhesive joints in area (1).
Release welded connections in areas (2).
Remove connecting plate (3).

Courtesy of BMW OF NORTH AMERICA, INC.

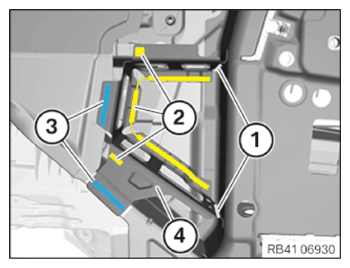

Carry out the rough separating cuts (1) on the bulkhead (4).
Partially open the welded connections in areas (2) with a file belt grinder.
Open spot-welded adhesive joints in areas (3).
Remove bulkhead (4).

Courtesy of BMW OF NORTH AMERICA, INC.

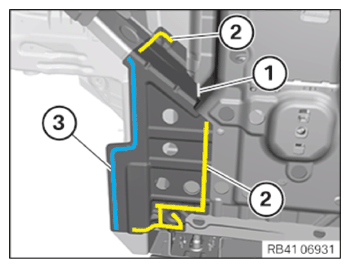

Perform a rough separating cut (1) on the crash reinforcement
Release welded connections in areas (2).
Open the spot-welded adhesive joints in areas (3) and remove the crash reinforcement.

Courtesy of BMW OF NORTH AMERICA, INC.

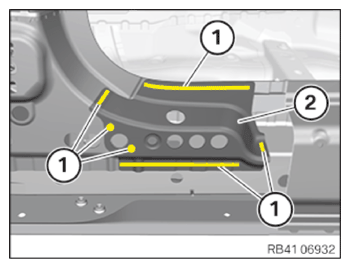

Open the welded connections in areas (1) and remove the reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

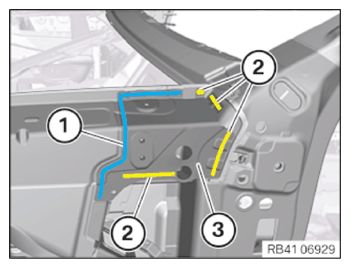

Perform separating cuts (1) as shown. Only cut through the outer panel.
Open the welded connections in area (2) and remove the sheet metal cutout (3).

Courtesy of BMW OF NORTH AMERICA, INC.

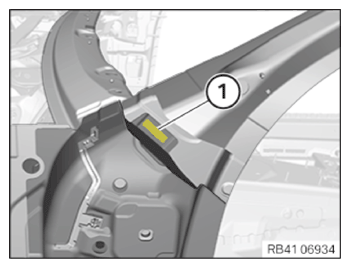

Release the welded connections in the area (1) with the file beltsander.

Courtesy of BMW OF NORTH AMERICA, INC.

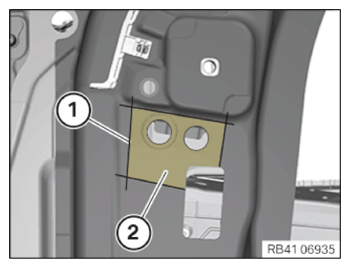

Perform a rough separating cut (1) in accordance with the diagram and remove the sheet metal cutout (2).

Courtesy of BMW OF NORTH AMERICA, INC.

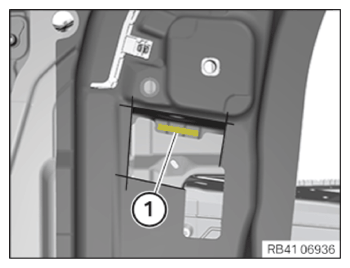

Release the welded connections in the area (1) with the file belt sander.

Courtesy of BMW OF NORTH AMERICA, INC.

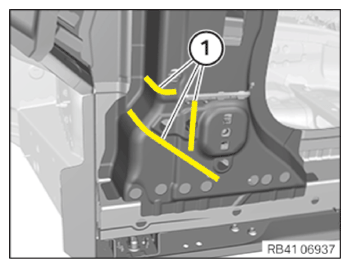

Release welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

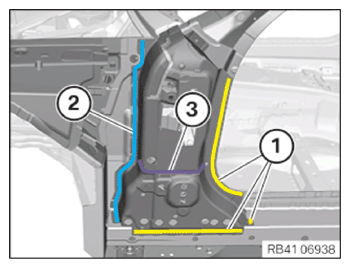

Release welded connections in areas (1).
Release the spot-welded adhesive joints in area (2).
Detach the reinforcement of the A-pillar from the cavity sealing (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1).
Remove the reinforcement (2) together with the cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
