Installing The A-Pillar With Reinforcement
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

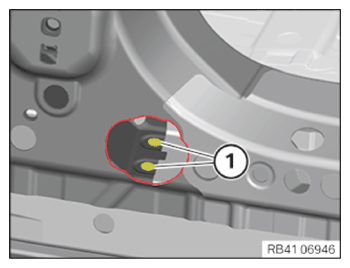

- Apply sealant D1 to cavity sealing (1).CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310ml 83422409985 - Install cavity sealing (1) in the new part.
- Adjust the new part using an alignment bracket or a universal fixture and secure it.

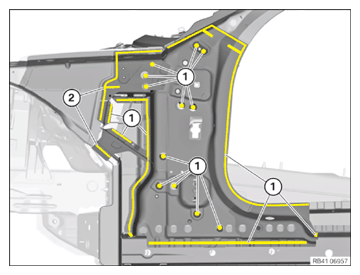

- Weld new part in areas (1) and (2) as per new part preparation processes.
In the areas (2), observe the procedure for replacing spot-welded adhesive joints of the standard production.

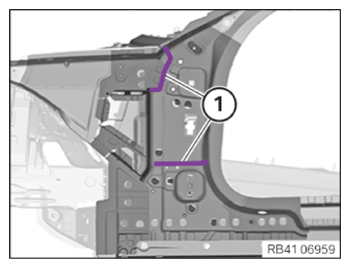

NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Weld the new part in the area (1) according to the new part preparation process.NOTE: To provide a better overview: Schematic diagram with partially hidden components.
- Weld the new part in the area (1) according to the new part preparation process.NOTE: To provide a better overview: Schematic diagram with partially hidden components.

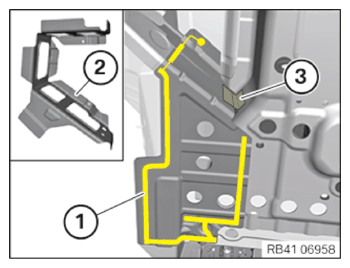

- Install the new part crash reinforcement and weld it in areas (1) as per the new part preparation processes.
For better clarity, the bulkhead (2) is not shown.
- Install the reinforcement plate (3) and weld.NOTE: TECHNICAL INFORMATION

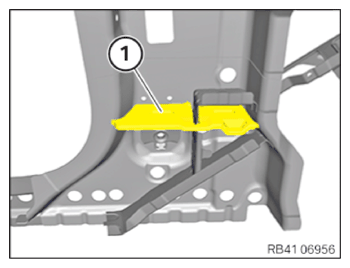

For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant D1 to the new cavity sealings (1).CONSUMABLE SPECIFICATION
Sealant D1 (seam sealing) 310ml 83422409985 - Fit cavity sealings (1).
- Apply sealant D1 to the cavity sealings (1).
- Install the new part outer shell of the A-pillar and the reinforcement plates.

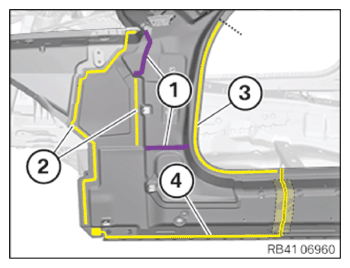

- Weld the new part and the reinforcement plates in areas (2) to (4) according to the new part preparation process.
In the areas (2) and (3), observe the procedure for replacing spot-welded adhesive joints from standard production.

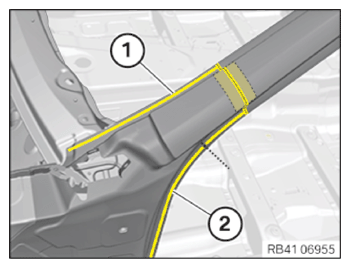

- Weld the new part and reinforcement plate in areas (1) and (2) as per new part preparation process.
In the area (2), observe the procedure for the replacement of spot-welded adhesive joints for the standard production.
