Preparing New Parts

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components

Remove adhesive residue on the vehicle joining areas.

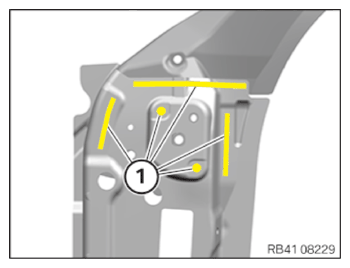

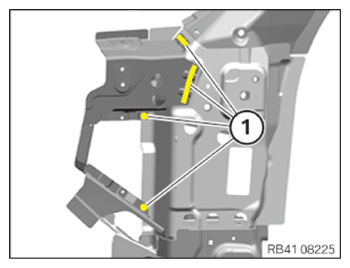

Release welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

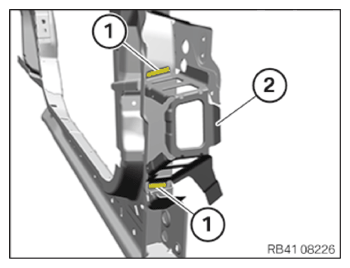

Release the welded connections in areas (1) and remove the bulkhead (2).

Courtesy of BMW OF NORTH AMERICA, INC.

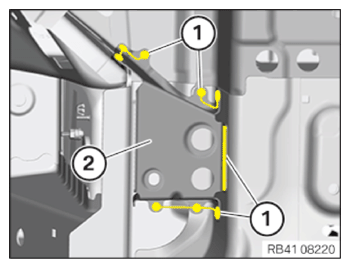

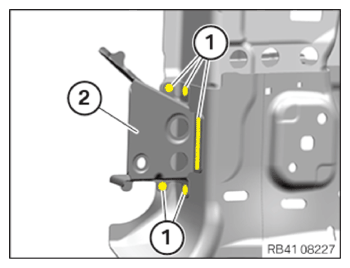

Release the welded connections (1) and remove the crash reinforcement (2).

Courtesy of BMW OF NORTH AMERICA, INC.

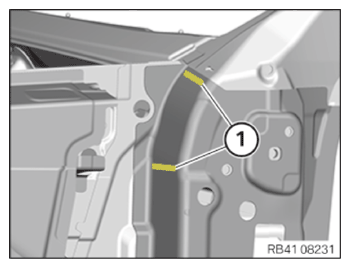

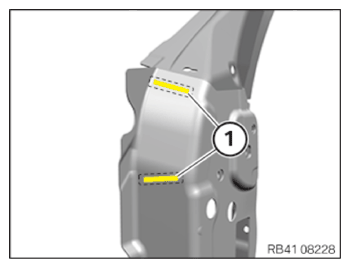

Detach the welded connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

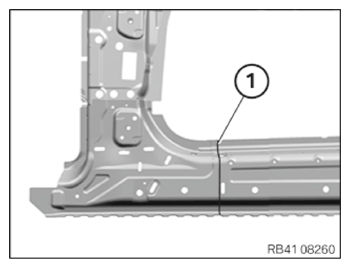

Make a separating cut on the outer side sill area in accordance with separating cut on the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part using an alignment bracket or a universal fixture and secure it.

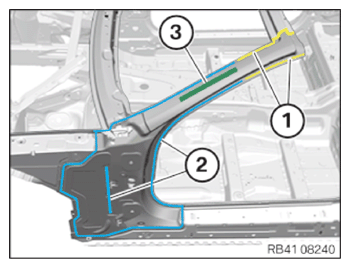

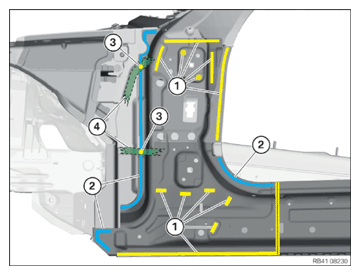

Prepare areas (1) and (2) for joining by welding.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components
Follow the procedure for replacing standard production spot-welded adhesive joints in the areas (2).
Prepare the areas (3) so the repair spot-welds can be set on the production spot-welds.
Mind the bonded connections (4) located on the other side.

Courtesy of BMW OF NORTH AMERICA, INC.

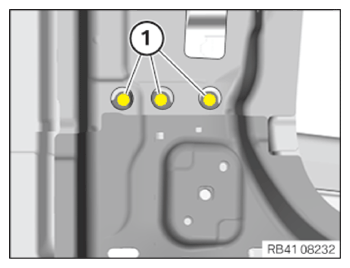

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the new part crash reinforcement (2) and prepare for joining by welding in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the bulkhead (1) and prepare for joining by welding in the areas (2) and (3).
Follow the procedure for replacing standard production spot-welded adhesive joints in the areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.

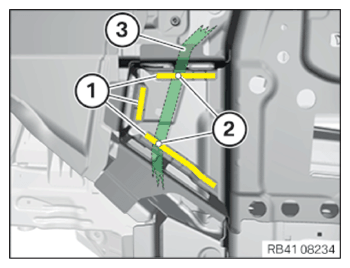

Prepare areas (1) for joining by welding.
Prepare the areas (2) so the repair spot-welds can be set on the production spot-welds.
Mind the bonded connections (3) located on the other side.

Courtesy of BMW OF NORTH AMERICA, INC.

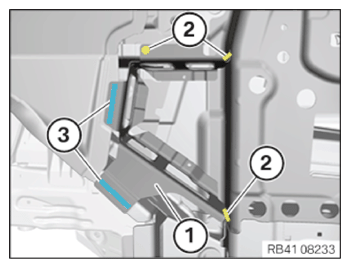

Adjust the connecting plate (1) and prepare for joining by welding in the areas (2) and (3).
Follow the procedure for replacing standard production spot-welded adhesive joints in the areas (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Fit in new part.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components
Prepare areas (1) and (2) for joining by welding.
Follow the procedure for replacing standard production spot-welded adhesive joints in the areas (2).

NOTE: TECHNICAL INFORMATION
Structural adhesive bonding .
Observe preparation of bonding surfaces.
For additional information see: 41 00... BMW bonding instructions

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the area (3) for the structural adhesive bonding of steel on steel.
