Install A-Pillar Reinforcement

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

Apply sealant D1 to cavity sealing (1).
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
Install cavity sealing (1).
Apply sealant D1 to the outer cavity sealing (2).
Install the new part with an alignment bracket or a universal fixture.

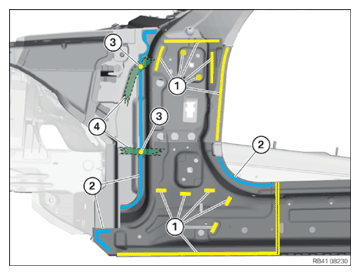

Weld new part in the areas (1) to (3) as per the new part preparation process.
In so doing, avoid excessive heat input in the adhesive areas (4) behind.
In the areas (3) apply repair spot-welds to the series spot-welds.

Courtesy of BMW OF NORTH AMERICA, INC.

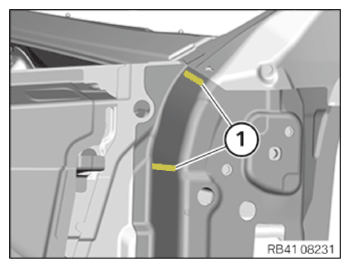

Weld new part in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

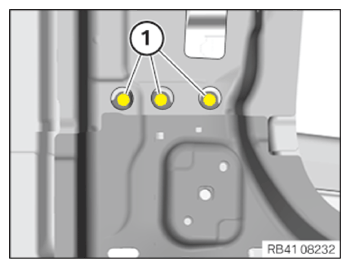

Weld new part in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

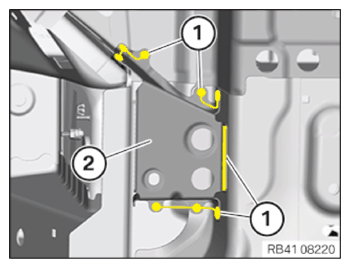

Install new crash reinforcement part (2) and weld in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

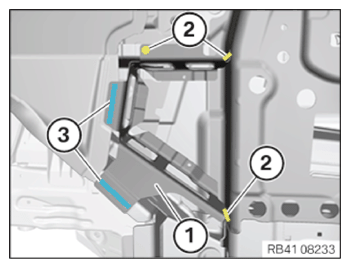

Install bulkhead (1) and weld in the areas (2) and (3) as per the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.

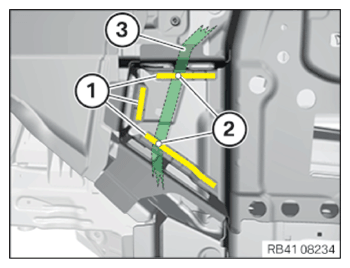

Weld bulkhead in the areas (1) and (2) as per the new part preparation process.
In so doing, avoid excessive heat input in the adhesive area (3) behind.
In the areas (2) apply repair spot-welds to the series spot-welds.

Courtesy of BMW OF NORTH AMERICA, INC.

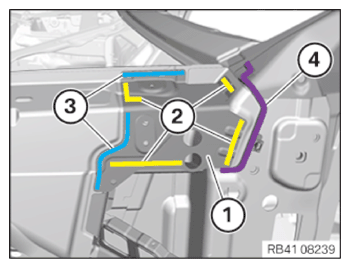

Install connecting plate (1) and weld in the areas (2) and (3) as per the new part preparation process.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)
Apply sealant D1 to the new cavity sealing (4).
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
Install cavity sealing (4).
Pre-clean adhesive area (1) on the vehicle and on the new part with solvent cleaner R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean adhesive area (1) on the vehicle and on the new part with solvent cleaner R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217

Courtesy of BMW OF NORTH AMERICA, INC.
Apply adhesive K1 to the adhesive area (1).
ADHESIVE SPECIFICATION

Body adhesive K1 195 ml 83190413015

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded)
Apply sealant D1 to cavity sealing (2).
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310ml 83422409985
Install new part and weld in the areas (1) and (2) as per the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.
