Collision - Body Panel Repair (G14, G15, & G16) (1 Of 2)
>>
41 14 Wheel Wells
>>
41 14 505 Replace The Rear Left Outer Wheel Arch Section (Side Panel Detached) (8' Series Gran Coupe Sedan Models)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section

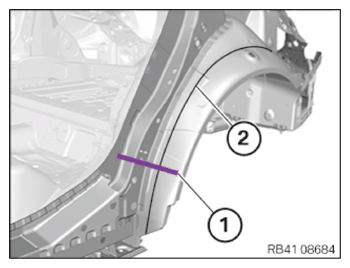

Remove cavity sealing (1).
Mark a separating cut (2) as shown and carry it out.
Courtesy of BMW OF NORTH AMERICA, INC.

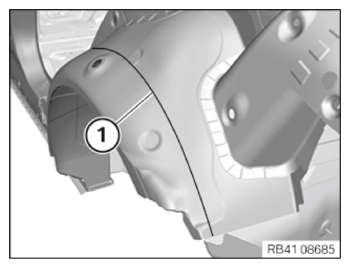

Mark a separating cut (1) as shown and carry it out.
Remove the section of the outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
