Collision - Body Panel Repair (G14, G15, & G16) (1 Of 2)
>>
41 14 Wheel Wells
>>
41 14 505 Replace The Rear Left Outer Wheel Arch Section (Side Panel Detached) (8' Series Convertible Models)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section
Remove the cavity sealing (1).
Courtesy of BMW OF NORTH AMERICA, INC.

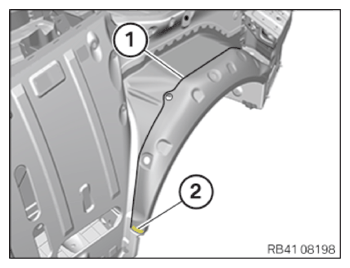

Mark and make the separating cut (1) as shown.
Open welded connections in area (2).
Courtesy of BMW OF NORTH AMERICA, INC.

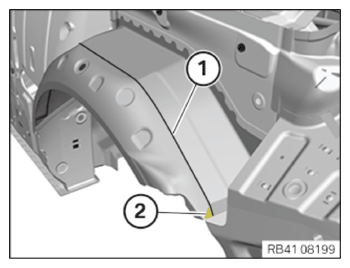

Mark and make the separating cut (1) as shown.
Release welded connection (2) and remove section of outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
