Preparing New Part
- Mark the separating cut on the new part according to the separating cut on the vehicle + 20 mm added material and cut.
- Adjust the new part in combination with the side panel to fit and secure.

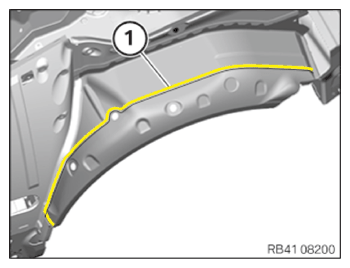

- Prepare joins by welding in area of overlap (1).
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
