41 14 Wheel Wells
>>
41 14 504 Replace The Rear Right Outer Wheel Arch Section (Side Panel Detached) (8' Series Gran Coupe Sedan Models)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section

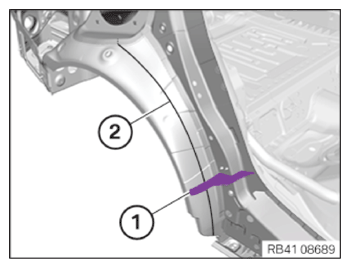

Remove cavity sealing (1).
Mark a separating cut (2) as shown and carry it out.
Courtesy of BMW OF NORTH AMERICA, INC.

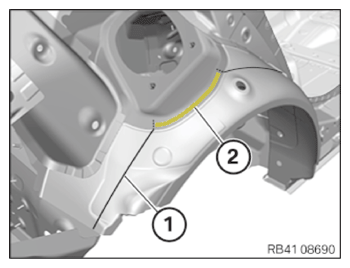

Mark a separating cut (1) as shown and carry it out.
Open welded connections in area (2).
Remove the section of the outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
