Preparing New Part

Detach sheet metal parts that are not required from new parts.
Mark and make the separating cut on the new part wheel well according to the separating cut on the vehicle with a material allowance of 15 mm.
Adjust new parts in combination with the side panel.

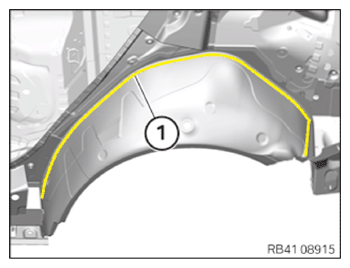

Prepare the new part in area (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

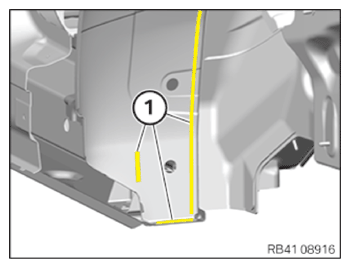

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Fit in new part.
Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Make the separating cut on the new part according to the separating cut on the vehicle.
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel)

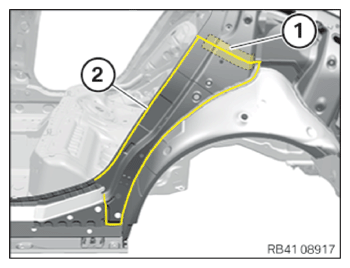

Prepare a reinforcement plate (1) for the separating cut.
Adjust the new part and prepare the area (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
