New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

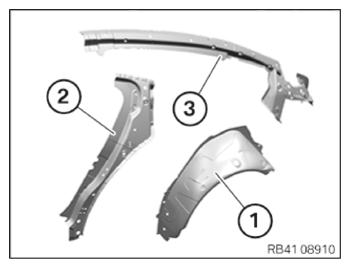

Rear outer wheel arch section (1)
Reinforcement of the lower C-pillar (2)
Reinforcement of the inner roof frame (3)
Outer lower shaped part of C-pillar
Inner lower C-pillar shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Coarse thread bolt 5 Sealing compound D1 Cavity protection wax remover
