Remove Outer Wheel Arch Section With Reinforcement

Remove the cavity sealing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

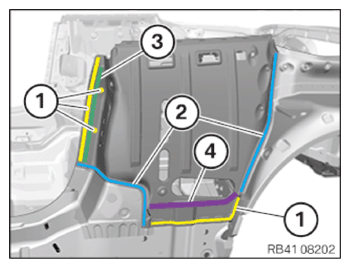

Release welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
Open spot-welded adhesive joints in areas (2).
Release bonded connection in area (3).
Detach B-pillar reinforcement from radiator tank (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

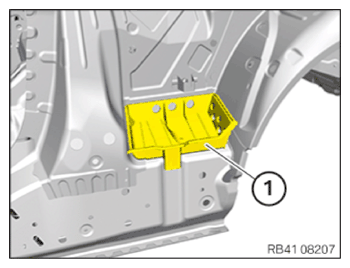

Remove radiator tank (1).

Courtesy of BMW OF NORTH AMERICA, INC.

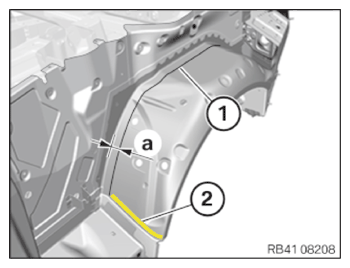

Mark and carry out the separating cut (1) as per dimension a.
Dimension a = 20 mm.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

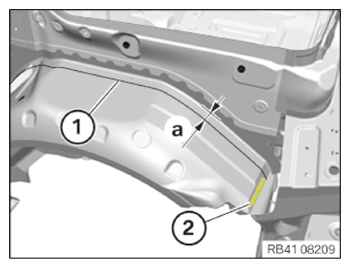

Continue separating cut (1) as per dimension a.
Dimension a = 20 mm.
Release welded connections in the area (2) and remove the outer wheel arch section.

Courtesy of BMW OF NORTH AMERICA, INC.
