Preparing New Part
- Mark the separating cut on the new part according to the separating cut on the vehicle +15 mm added material and cut.
- Adjust the new part in combination with the side panel to fit and secure.
- Prepare for joining by welding in the area of the overlap (1).
- Adjust the new part in combination with the side panel to fit and secure.

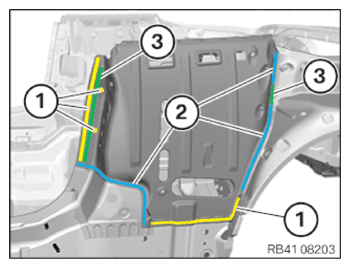

- Prepare for joining by welding in areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components - In the areas (2) observe the procedure for replacing standard production spot-welded adhesive joints.NOTE: TECHNICAL INFORMATION
Structural adhesive bonding .
Observe preparation of bonding surfaces.
For additional information see: 41 00... BMW bonding instructions - Prepare areas (3) for steel on steel structural adhesive bonding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
