Install Outer Wheel Arch Section With Reinforcement

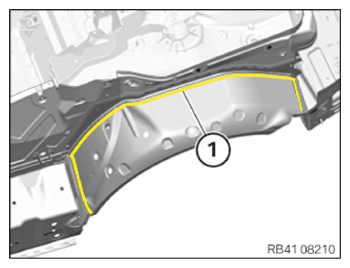

- Install new part (1) and weld in the area.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant to the new radiator tank (1). Install radiator tank (1).CONSUMABLE SPECIFICATION

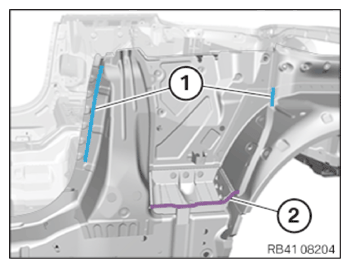

Sealant D2 290 ml 83425A547B9 - Pre-clean the bonding surfaces (1) on the vehicle and on the new part.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Pre-clean the bonding surfaces (1) on the vehicle and new part.CONSUMABLE SPECIFICATION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive on the bonding surfaces (1).ADHESIVE SPECIFICATION
Body adhesive K1 195 ml 83190413015 NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of cavity sealing (expanded) - Apply sealant to cavity sealing (2).

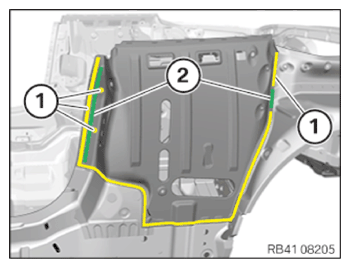

- Install new part and weld in areas (1) as per the new part preparation process.
Avoid excessive heat input on the adjacent adhesive areas (2).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding) - Apply sealant to the new cavity sealing (1). Install cavity sealing (1).
