Remove The Outer Wheel Arch Section With The Reinforcement

Remove cavity sealings (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1).
Remove the reinforcement (2) on the C-pillar.

Courtesy of BMW OF NORTH AMERICA, INC.

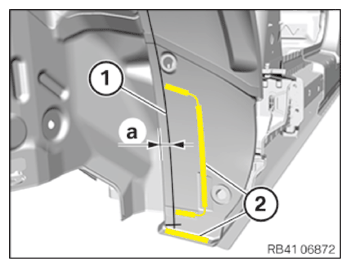

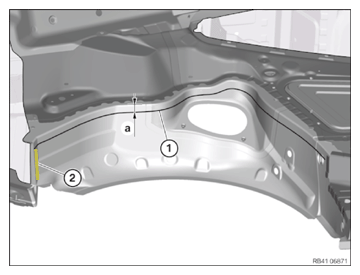

Mark and cut the separating cut (1) to dimension (a).
Dimension (a) = 10 - 15 mm
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

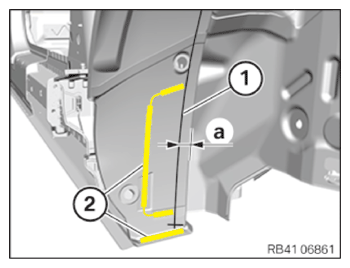

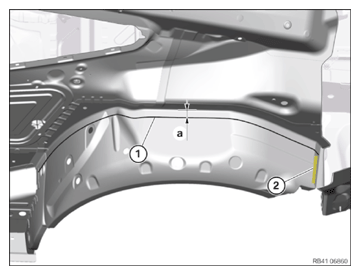

Mark and cut the separating cut (1) to dimension (a).
Dimension (a) = 10 - 15 mm
Release the welded connections in the areas (2) and remove the outer wheel arch section.

Courtesy of BMW OF NORTH AMERICA, INC.
