Preparing New Part
- Remove unnecessary components from new part.

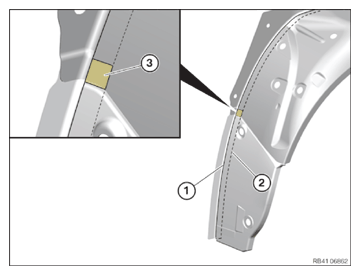

- Mark the separating cut (1) on the new part according to the separating cut (2) on the vehicle + approx. 15 mm material allowance and cut.
- Remove the area of the overlap (3) approx. 20 x 20 mm in the joining flange.
- Fit the new parts together with the side panel and fix in place.
- Fit the new part wheel well from the top.

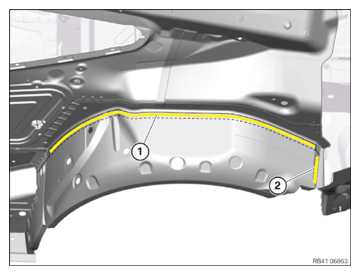

- Prepare for overlapping joining by welding in areas (1) and (2).

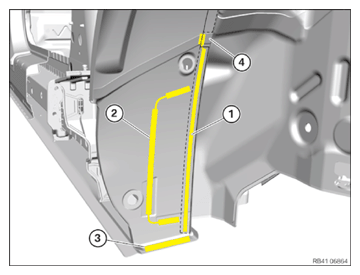

- Prepare for joining by welding in the areas (1) to (3).
- Prepare area (1) for joining by overlapping.
- In area (4), observe the change of the flange contact surface of the new part.

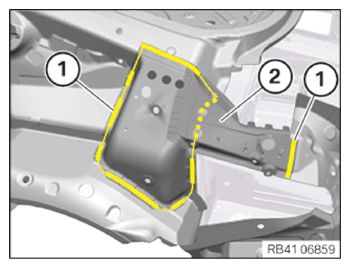

- Adjust new part C-pillar reinforcement (2).
- Prepare the areas (1) for joining by welding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
