New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work

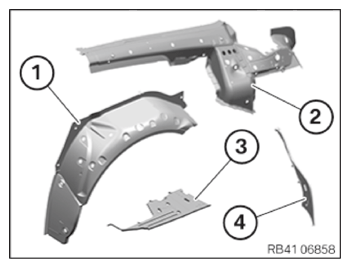

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Outer wheel arch section (1)
Reinforcement, roof frame, inner (2)
Reinforcement, shaped part, side (3)
Wheel well, shaped part, rear (4)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Coarse thread bolt 10 Sealant D1 Cavity sealing wax remover
