Installing The Outer Wheel Arch Section With The Reinforcement

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

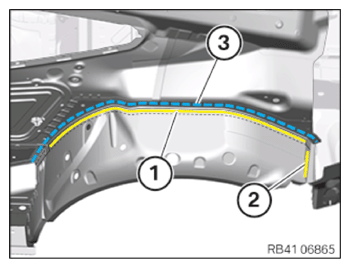

Install the new outer wheel arch section part in areas (1) and (2) and weld it according to the new part preparation process.
Avoid applying too much heat to the adjacent adhesive area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

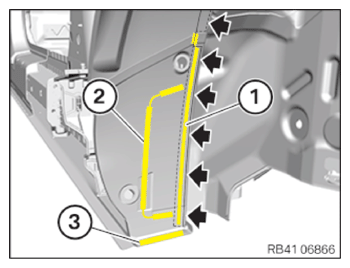

Weld the new part in the areas (1) to (3).
In this process, avoid excessively high heat input in the adjacent adhesive area (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

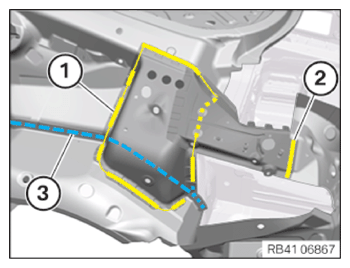

Install new part and weld in the areas (1) and (2).
Avoid applying too much heat to the adjacent adhesive area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

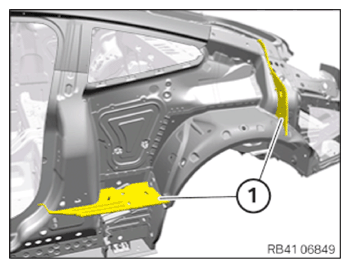

Apply sealant D1 to the new cavity sealings (1). Fit cavity sealings (1).
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
