Removing The Left Luggage Compartment Floor

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

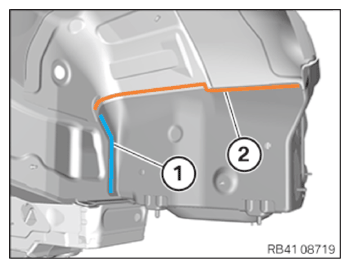

Loosen self-tapping screws and bonded connection in area (1).
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Open welded connections in area (1).
Release the bonded rivet connection in area (2) and remove the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
