Removing The Left Luggage Compartment Floor

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

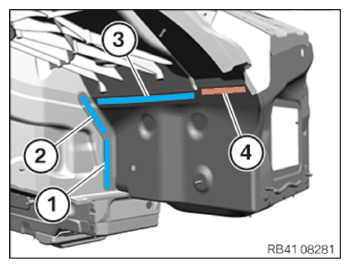

Loosen self-tapping screws and bonded connection in area (1).
Release bonded rivet connections in the areas (2) and (3).
Open welded connections in area (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen self-tapping screws and bonded connection in area (1).
Release bonded rivet connections in the areas (2) and (3).
Open welded connections in area (4).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.
Open welded connections in area (1).
Release the bonded rivet connection in area (2) and remove the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
