Removing The Left Luggage Compartment Floor
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

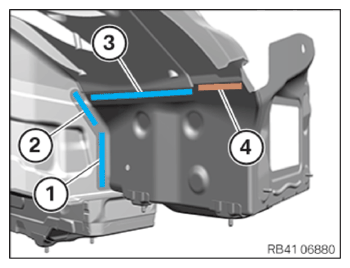

- Loosen self-tapping screws and bonded connection in area (1).
- Release bonded rivet connections in the areas (2) and (3).
- Open welded connections in area (4).
- Open welded connections in area (1).
- Release the bonded rivet connection in area (2) and remove the luggage compartment floor.
