Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: 41 00... Repair method for repair stage 2
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

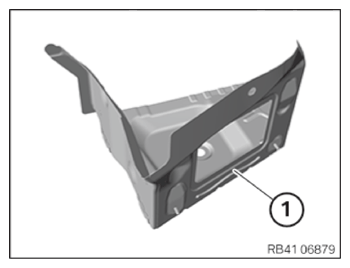

Luggage compartment floor, side (1)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K5 (50 ml) 1 Blind rivet N1 10 Blind rivet N2 5 Coarse thread bolt 15 Threaded weld bolt 5 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D1 Cavity protection wax remover
