Removing The Left Luggage Compartment Floor

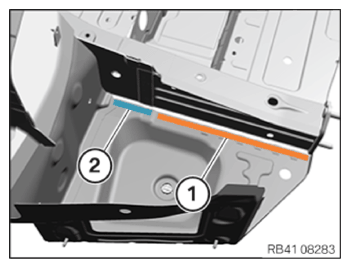

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

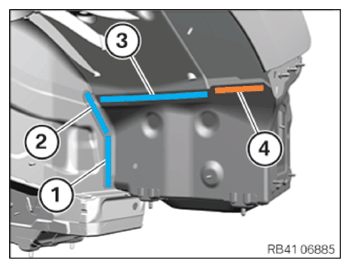

Loosen self-tapping screws and bonded connection in area (1).
Release bonded rivet connections in the areas (2) and (3).
Open welded connections in area (4).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Shown without side panel and without tail panel.
Open welded connections in area (1).
Release the bonded rivet connection in area (2) and remove the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
