Installing The Left Luggage Compartment Floor

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to the bonding surfaces.
ADHESIVE SPECIFICATION

Body adhesive K5 50 ml 83192158654

Install the new part and rivet in areas (1) to (3) with blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm

83190301414

CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm

83190301419

Weld the new part in the area (4).
Avoid applying too much heat to the adjacent adhesive area (3).

NOTE: To provide a better overview: Shown without side panel and without tail panel.

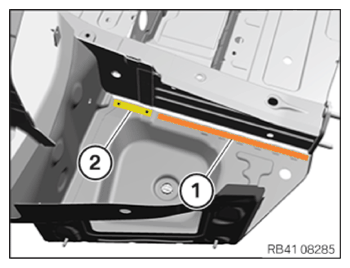

Rivet the new part in the area (2) with blind rivets N2.
CONSUMABLE SPECIFICATION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in the area (1).
Avoid applying too much heat to the adjacent adhesive area (2).
Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
