Preparing New Part
- Carry out the severance cuts on the new parts according to the severance cut on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...

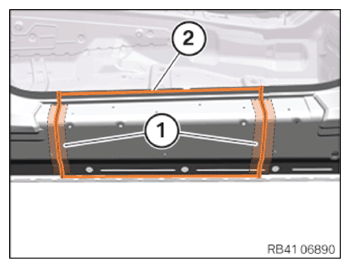

Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates (1) at severance cuts.
- Adjust the new part and reinforcement plates (1) and prepare the joints by welding in the area (2).
