Preparing New Part
- Carry out the severance cuts on the new parts according to the severance cut on the vehicle.

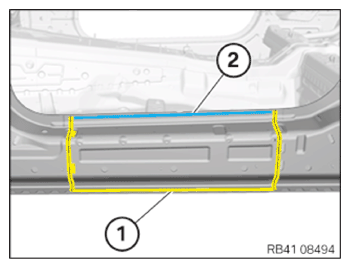

- Adjust the new part and prepare it in areas (1) and (2) for joining by welding.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Spot-weld bonding steel components - In area (2), follow the procedure for replacing spot-welded adhesive joints for standard production.
