Removing Engine Mount In Front Of Bulkhead With Wheel Arch

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

Release bonded rivet connections in the areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the spot-welded adhesive joints in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: Open riveted joints (41 00).
Release bonded rivet connections in the areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Release bonded rivet connections in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

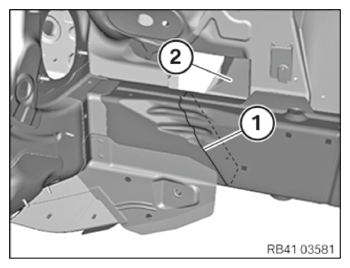

Mark severance cut (1) according to schematic diagram and disconnect.
Remove engine mount and wheel arch (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Open welded connections in area (1).
Unscrew the self-tapping screws and bonded connection in area (2).
Remove reinforcement (3).

Courtesy of BMW OF NORTH AMERICA, INC.
(1) Mark severance cut () as pictured and cut. Detach the engine mount in sections.
Unscrew the self-tapping screw and bonded connection in the area (2).
Loosen the bonded rivet connections in the areas (3) partially with the belt sander.

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the self-tapping screws and bonded connections in the areas (1). Remove the engine mount (2).
