Install the seal for the rear roof frame

NOTE: Perform the steps on the left and right side.

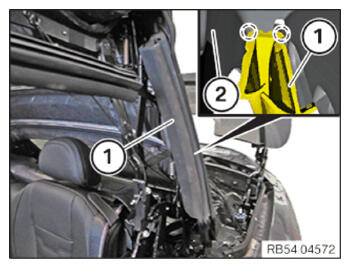

Insert the rear roof frame seal (1).
Make sure the seal (1) is correctly installed in the seal carrier (2) so as to avoid ingress of water.

Courtesy of BMW OF NORTH AMERICA, INC.

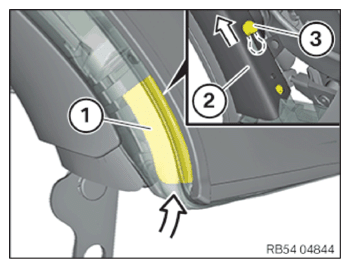

Position the mounting plate (1) on the seal of the rear roof frame.
Thread the mounting pin (3) on to the retaining strip for the seal of the rear roof frame (2) and move upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

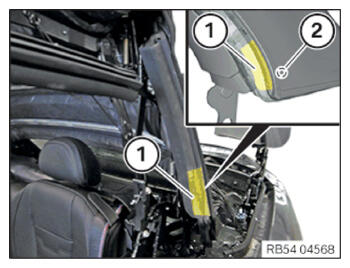

Tighten the screw (1) from the inside on the mounting plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

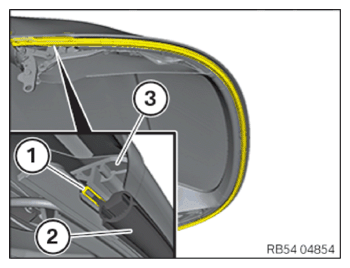

Thread the retaining clip (1) of rear roof frame seal (2) at the convertible top frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

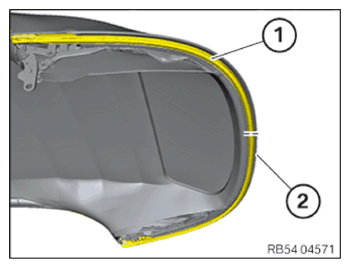

Detach the rear roof frame seal (1) at the center marking of the convertible top frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

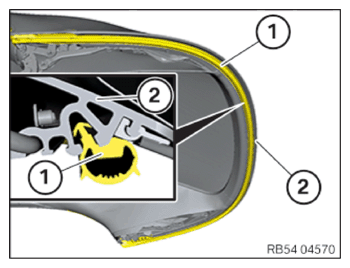

Insert the rear roof frame seal (1) at the convertible top frame (2).
NOTE: To facilitate installation, wet the seal a little with water.

Courtesy of BMW OF NORTH AMERICA, INC.
