Installing the seal for the roof frame at side

NOTE: Description is for left component only. Procedure on the right side is identical.

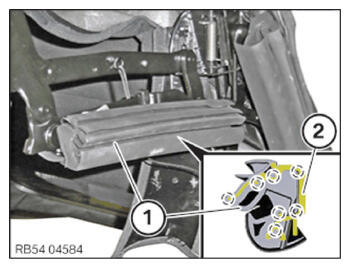

Feed in the seal for the roof frame at side (1) on the seal carrier (2).
Make sure the seal (1) rests against the support (2) correctly at the marked areas, so water ingress is prevented.
NOTE: Also lightly coat the seal with water to ease installation.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
