Installing the windshield panel trim

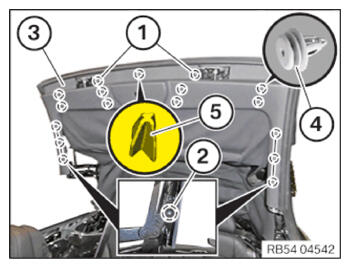

- Replace the clips (4).
Parts : Clips
- Clip the windshield panel trim (3) at the centering (5) and at the clips (4).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Windshield panel trim to front convertible top Screw tightening torque 2 Nm - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION

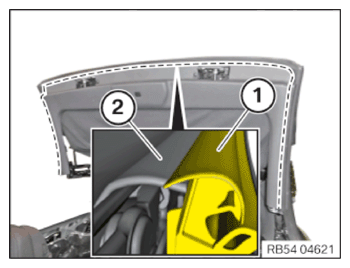

Windshield panel trim to side convertible top Screw tightening torque 3 Nm - Ensure that the seal (1) is positioned above the cowl cover (2).
If necessary, correct the position of the seal (1) with the special tool 2 298 505 carefully.
