Installing the Bowden cable for emergency release

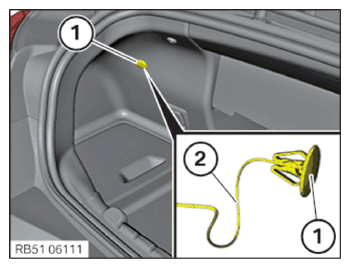

- Thread the Bowden cable (1) into the luggage compartment partition wall and clip it into place.

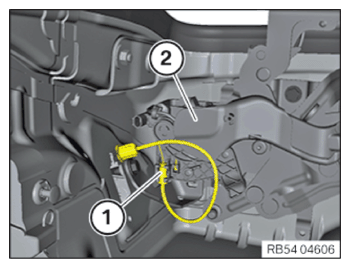

- Thread the Bowden cable for the convertible top compartment lid release (1) into the convertible top compartment lid mechanism (2) and clip it into place.
- Insert and attach the Bowden cable 2.
- Clip in the emergency release (1).
